1) What is Anodizing?

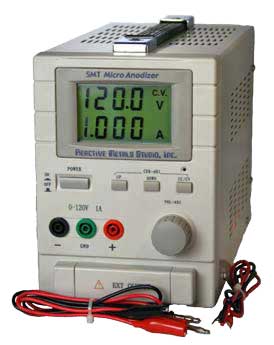

Anodizing is a process where a coating is built up on the surface of certain metals (titanium, niobium, tantalum, aluminum, magnesium and zinc) by heating, with chemicals, or by electricity. In the case of titanium, the coating that is built up is a layer of titanium dioxide. Titanium dioxide, which is also known as titanium oxide, occurs naturally on the surface of titanium. Anodizing the surface of titanium can be done by the use of heat but the results are not easily controlled. The most common method is to form an oxide layer on the surface with the use of electricity. The way that this is done is with a variable power supply in which an electrode is connected to the positive side (anode), and one to the negative side (cathode). Both are then submerged into a mildly conductive solution, thus completing the electrical circuit. The piece that is to be anodized is connected to the positive side, and that is why the process is called “anodizing”.
